Special Features/Product Advantages:

• Innovative high-efficiency pump for highest efficiency, based on a new Wilo glanded pump design
• Highly efficient EC motor (efficiency = IE4 limit values according to IEC TS 60034-31 Ed.1)
• New hydraulics ideally adjusted to the EC motor technology
• Integrated electronic power adjustment
• Extremely compact and space-saving design
• Easy-to-operate due to established red button technology and display
• Different control modes p-c, p-v, PID and n=const. (manual control mode)
• Control range is up to three times as high as for conventional electronically controlled pumps
• Analogue interfaces 0-10 V, 2-10V, 0-20 mA, 4-20 mA
• Optional interfaces for bus communication using plug-in IF-Modules
• Integrated double pump management with efficiency-optimized peak-load activation
• Two configurable signal relays for run and fault signals
• Fault management tailored to heating and air-conditioning applications
• Access disable on the pump can be activated
• Integrated full motor protection
• High corrosion protection due to cataphoretic coating
• Condensate drainage as standard
• Integral threaded pump feet for foundation installationApplication:Hot water heating systems, air conditioning, closed cooling circuits, industrial circulating systems without abrasive subtances.

  Design:

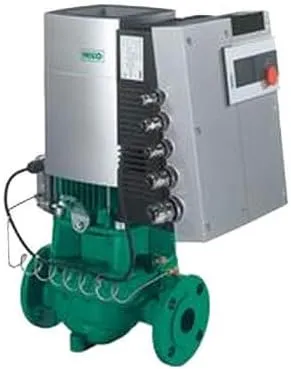

  • High efficiency, single stage, low pressure, inline centrifugal pump
  • Supplied with EC motor and electronic duty adaptation
  • Available in glanded construction , mechanical shaft seal, and flanged connections

  Specifications:

  • Product Type: Circulator Pump
  • Type: Inline Pump
  • Material: Cast Iron
  • Horse Power: 4.8
  • Voltage: 460v
  • Phase: 3
  • Hertz: 50/60
  • Temperature Range (F): -4°F to 284°F
  • Max Pressure (PSI): 232
  • Connection Type: Flanged
  • Connection Size: 2"
  • RPM: 4850
  • Standards Met: ANSI
  • Application: Heating
